| Series | Pipe Range | Output Capacity Up To** |
| Unit | mm | Kg/hr |
| DD 63 | 16-63 | 100-170 |
| DD 110 | 20-110 | 250 |
| DD 200 | 63-200 | 450 |
| DD 250 | 110-250 | 550 |
| DD 315 | 110-315 | 700 |
| DD 400 | 200-400 | 900 |
| DD 630 | 300-630 | 1200 |
PVC Pipe Die Head
Die Head ensure the accurate thickness of the HDPE pipe wall and it gives perfect pipe at higher output. Low-pressure diagonal channel with spiral mixing part ensures extrusion at low temperature and homogeneous plasticization.
• High-Volume Low-Pressure Design Ensures Vast Thickness Range.
• Uniform Melt Distribution Throughout the Entire Pipe Circumference.
• Twin Die Heads For Higher Outputs in Smaller Diameters
• Extruders Utilization From 80-100% Even With Smaller Pipes.
• Elimination of Continuous Spider Marks (ID to OD) Allowing Better Mechanical Properties of the Pipe.
• Ideal Residence Time Profile With Selective Temperature Control on the Sensitive Material.
HDPE Pipe Die Head
- Improved Inner Pipe Surface and Short Purging Time
- Optimized Back Pressure Allows a Balance of Compression & Melt Temperature Control.
- Uniform Melt Flow Can Be Achieved Yielding Minimum wall Thickness Deviation.
- Enables PE, PPR, ABS Process Ability Only By Changing The Tooling.
- Constant Processing Characteristics Over the Full Range of Material.
- Consistent Product Quality For All Pipe Sizes.
- Low Pressure Build-Up & Low Melt Temperature Even With High Throughput.
| Series | Pipe Range | Output Capacity Up To** |
| Unit | mm | Kg/hr |
| DD 50 | 12 - 50 | 150 |
| DD 110 | 20 - 110 | 250 |
| DD 200 | 20 - 200 | 500 |
| DD 250 | 63 - 250 | 650 |

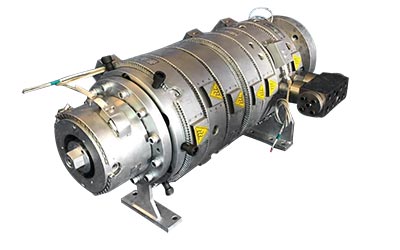

| Three Layer Small | 16 - 125 | 500 |
| Three Layer Big | 63 - 315 | 900 |
